Nissan Patrol GR Y60 Y61 2.8 TD PU Bushing Set XXL

• Nissan

• Patrol Y60
• Patrol Y61

Restore your Patrol's chassis to new condition! With the ultimate XXL complete set of polyurethane (PU) bushings, you'll give your Nissan Patrol Y60 or Y61 (2.8) a complete overhaul. When the original rubber bushings become soft or worn out after years of hard off-road use, mud, and aging, the entire axle guidance suffers – the vehicle floats on the road and loses precision off-road.

Our orange comfort version (75 ShA) permanently restores the exact axle geometry, eliminates vague handling, and at the same time maintains the necessary driving comfort for long expeditions.

Why this XXL complete set (75 ShA)?

The hardness of 75 ShA is the perfect choice for all-round and touring vehicles: It offers noticeably more solid guidance of the trailing arms and panhard rods than standard rubber, but is flexible enough to absorb hard impacts without damaging the material.

• Precise axle guidance: Prevents uncontrolled wandering of the solid axles and ensures maximum directional stability.

• Full articulation: The bushings are designed to optimally support the extreme working of the chassis off-road.

• Weather and chemical resistant: Absolutely insensitive to mud, water, oil, grease, and extreme temperature fluctuations.

• High durability: Unlike rubber, PU does not become porous, does not age, and does not wear out even under high continuous load.

⚠️ IMPORTANT NOTE: Measure stabilizer diameter!

Different stabilizers were installed ex works on Patrol models. Please be sure to measure the diameter of your stabilizers on the front and rear axles before purchasing so that we can send you the appropriate bushings!

Simply select the appropriate dimensions when ordering:

• Front axle diameter: optionally Ø 15 mm, Ø 21 mm or Ø 24 mm

• Rear axle diameter: optionally Ø 15 mm or Ø 17 mm

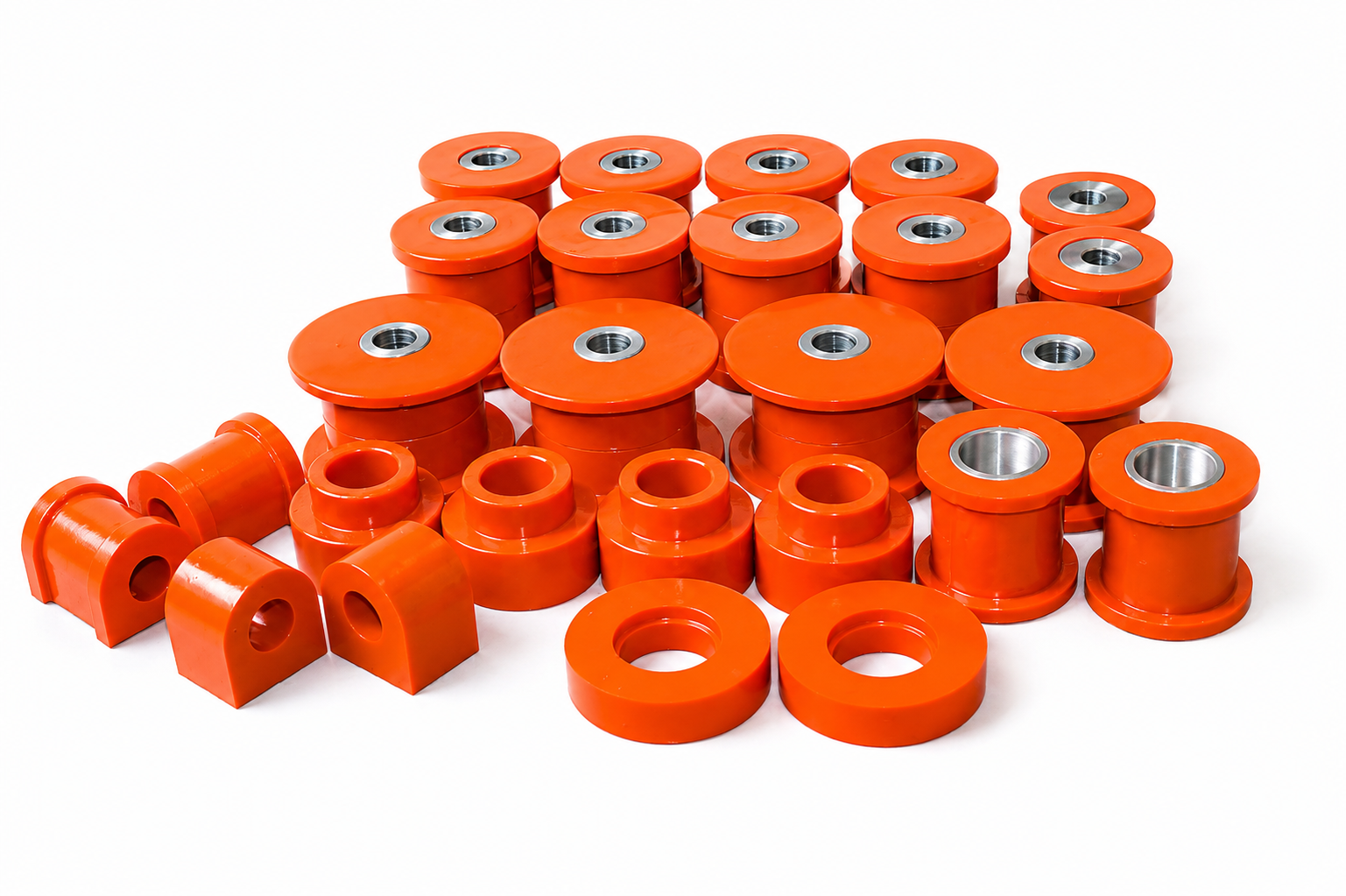

Scope of delivery (XXL chassis bushing set)

The set contains all bushings for the front and rear axles including the necessary metal sleeves:

1. Front trailing arm (axle connection): 4x PU bushings + 4x metal sleeves

2. Rear front trailing arm (frame connection): 4x PU bushings

3. Front panhard rod: 2x PU bushings + 2x metal sleeves

4. Rear panhard rod: 2x PU bushings + 2x metal sleeves

5. Rear upper trailing arms: 4x PU bushings + 4x metal sleeves

6. Rear lower trailing arms: 4x PU bushings + 4x metal sleeves

7. Lower trailing arms (frame side/spacers): 2x PU bushings

8. Front stabilizer: 2x PU bushings (size according to selection)

9. Rear stabilizer: 2x PU bushings (size according to selection)

Suitable vehicle models

• Nissan Patrol Y60: Model years 1987 – 1997 (2.8-liter engine)

• Nissan Patrol Y61: Model years 1998 – 2000 (2.8-liter engine)
