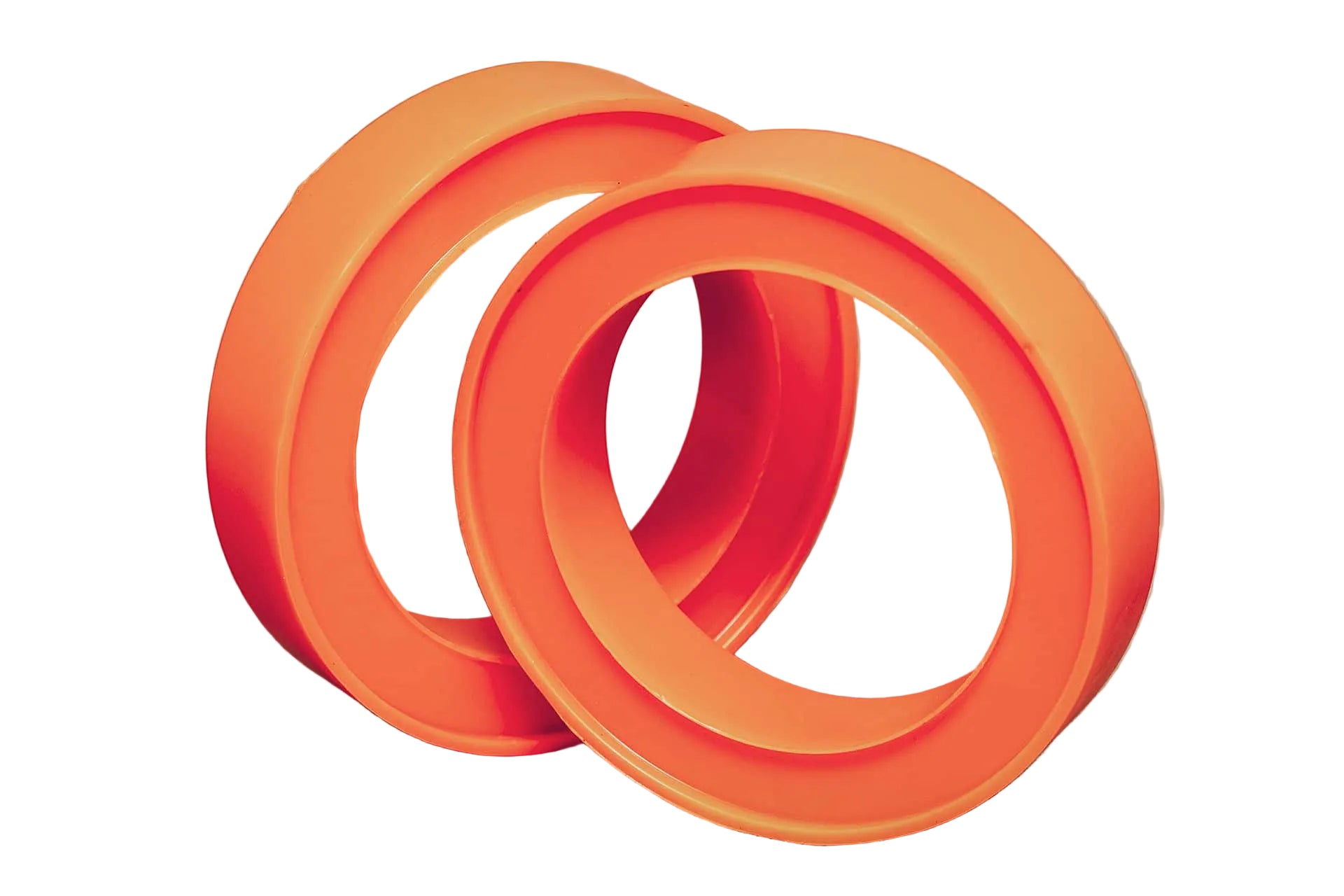

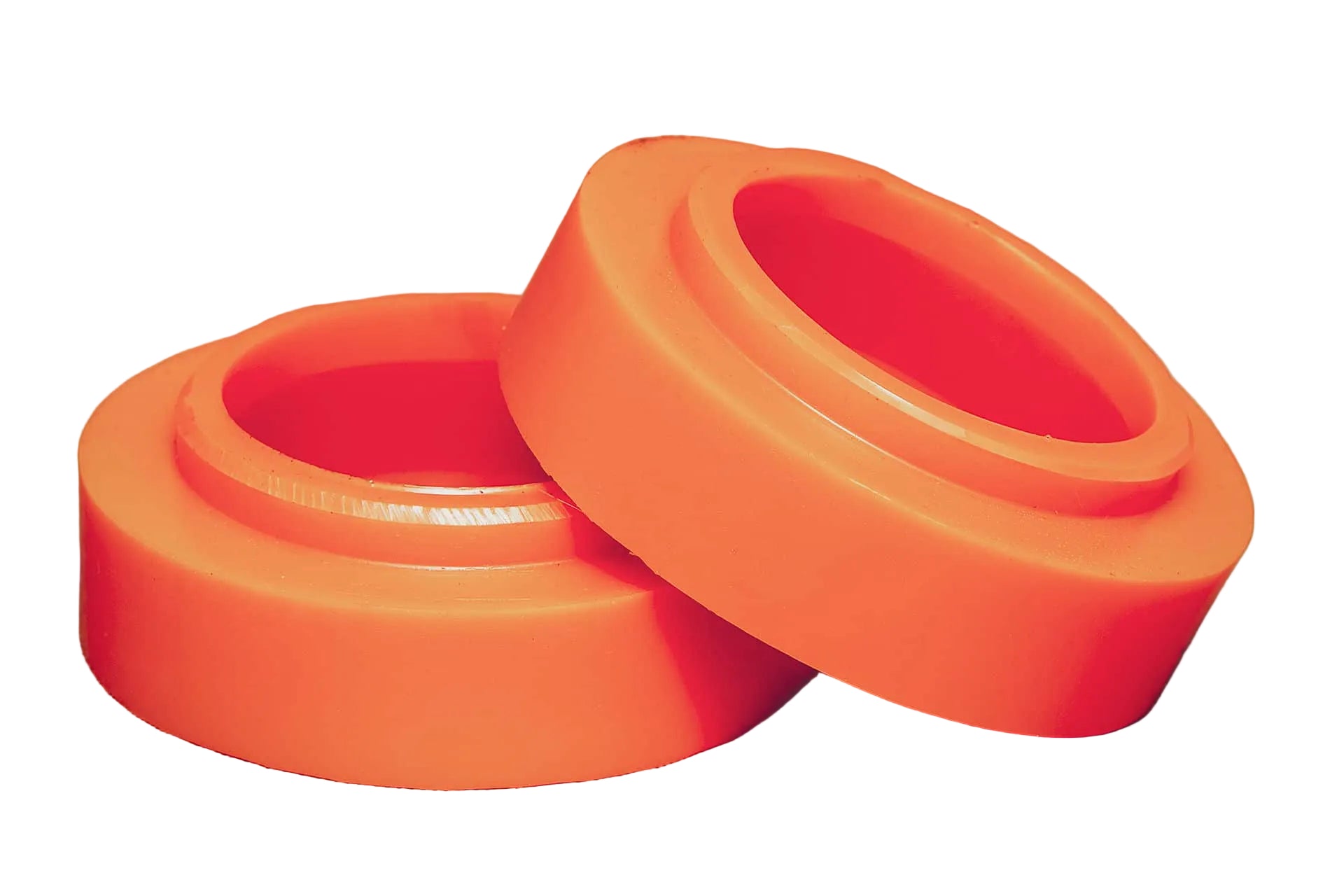

Suspension Spacers Toyota Land Cruiser 80 Lift Kit

• Toyota

• Land Cruiser 80

Take your Land Cruiser to the next level! With the complete spring spacer kit for the front and rear axles, you give your Toyota Land Cruiser 80 a targeted lift for maximum performance off the beaten track. These high-strength polyurethane spacers are the perfect solution to create additional space for larger tires, maximize ground clearance, and massively enhance the legendary off-road look of your Toyota.

Available in three height variants

Depending on the intended use, load, and desired setup, you can choose between three different variants to optimally raise the front and rear of your Land Cruiser:

• 30 mm variant: Achieves an effective lift of 3.0 cm. Ideal for a subtle increase in ground clearance and compensating for smaller equipment or winch bumpers.

• 40 mm variant: Achieves an effective lift of 4.0 cm. The perfect balance for long-distance travel, heavy loads, and moderate to heavy terrain.

• 50 mm variant: Achieves an effective lift of 5.0 cm. The maximum for uncompromising off-road performance, maximum axle articulation, and large tire clearance.

⚠️ Important note on vehicle modifications

Please note that a lift (especially with the 40 mm and 50 mm variants) changes the geometry of the chassis. Depending on the chosen setup and vehicle condition, further adjustments to the vehicle may be necessary. To ensure safe handling, correct axle centering, and clearance of components, modifications such as longer shock absorbers, adjustable Panhard rods, cast caster correction bushes (to correct the caster on the front axle), or extended brake lines may be required.

⚠️ Important legal notice (road approval)

This product does not have general operating approval (ABE) or a parts certificate. Installation voids the operating license of your vehicle in public road traffic according to § 19 StVZO.

• Intended use: Use is exclusively for racing, for pure off-road use on closed courses, or for export.

• Registration: Registration in the vehicle documents may be possible under certain circumstances by individual approval (§ 21 StVZO) at a corresponding test center. Please clarify this before purchase and installation with an officially recognized expert. We do not guarantee the approval of such individual approval.

Why polyurethane spacers (90 ShA)?

Unlike rubber spacers, which compress over time under the immense vehicle weight of the Land Cruiser, or hard metal components, which transfer impacts undamped to the frame, our polyurethane compound with 90 ShA offers perfect performance:

• Durable lift: The extremely high hardness of 90 ShA guarantees that the spacers will not compress even with full expedition equipment, heavy roof tents, or hard off-road use.

• Noise and vibration dampening: PU elastically isolates the chassis from the frame. Unpleasant chassis noises and fine vibrations are noticeably minimized compared to metal spacers.

• Weather and chemical resistant: Absolutely resistant to oil, grease, mud, UV radiation, and road salt – no rotting process like with rubber.

Product details & configuration

This set is simply mounted in combination with the original coil springs and largely retains the suspension characteristics.

• Height (spacer): Optionally 30 mm, 40 mm or 50 mm

• Color: Orange

• Hardness: 90 ShA (Heavy Duty / High Strength)

• Approval: No (without road approval / motorsport & off-road only)

Scope of delivery (complete set)

• 4x PU spring spacers

Suitable vehicle models

• Toyota Land Cruiser 80 (HDJ80, HZJ80, FZJ80): Model years 1990 – 1997

Give your Land Cruiser more ground clearance and a more aggressive off-road look in an instant – built for the next adventure off the beaten path!
