Rear Lift Spacers for Nissan Terrano 2 R20

• Nissan

• Terrano 2 R20

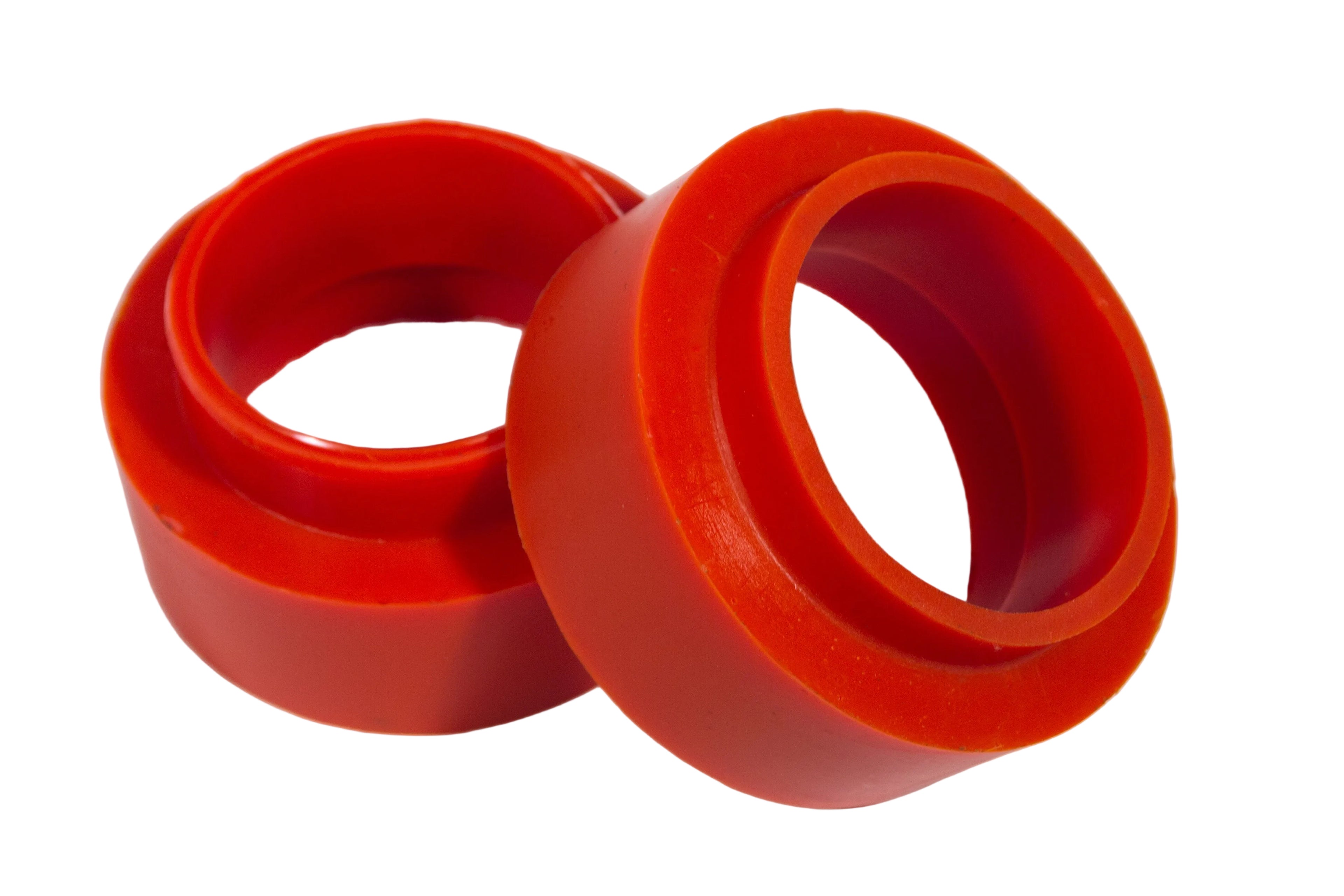

Raise the rear of your Nissan Terrano II R20 with polyurethane coil-spring spacers in a choice of 40 or 50 mm. The spacers alter the installed position of the rear springs; the front axle is not included in this set.

Key details

• Fits: Nissan Terrano II R20, 1993–2003
• Position: Rear axle
• Spacer height: Select 40 or 50 mm
• Material: Polyurethane
• Hardness: 90 Shore A
• Colour: Orange

Raise the rear suspension deliberately

The selected value is the nominal spacer height. Actual lift can vary with spring condition, payload and existing ride height. Ground clearance beneath the rear axle remains unchanged unless larger tyres are fitted.

The front suspension must be matched separately to achieve the desired overall vehicle stance.

Kit contents

• 2 rear PU spring spacers in the selected height

Technical and approval information

Depending on the selected height, longer shock absorbers, brake-line adjustments and a check or correction of the Panhard rod may be required.

No German ABE or parts certificate is supplied. The set is therefore not approved for public-road use in Germany without further approval. Discuss possible individual approval with an authorised inspection body before purchase and installation; approval cannot be guaranteed.

After installation, check suspension travel, remaining damper stroke, brake lines, axle position and all clearances.
